| Article number: | 3310 |
| Availability: | In stock (1) |

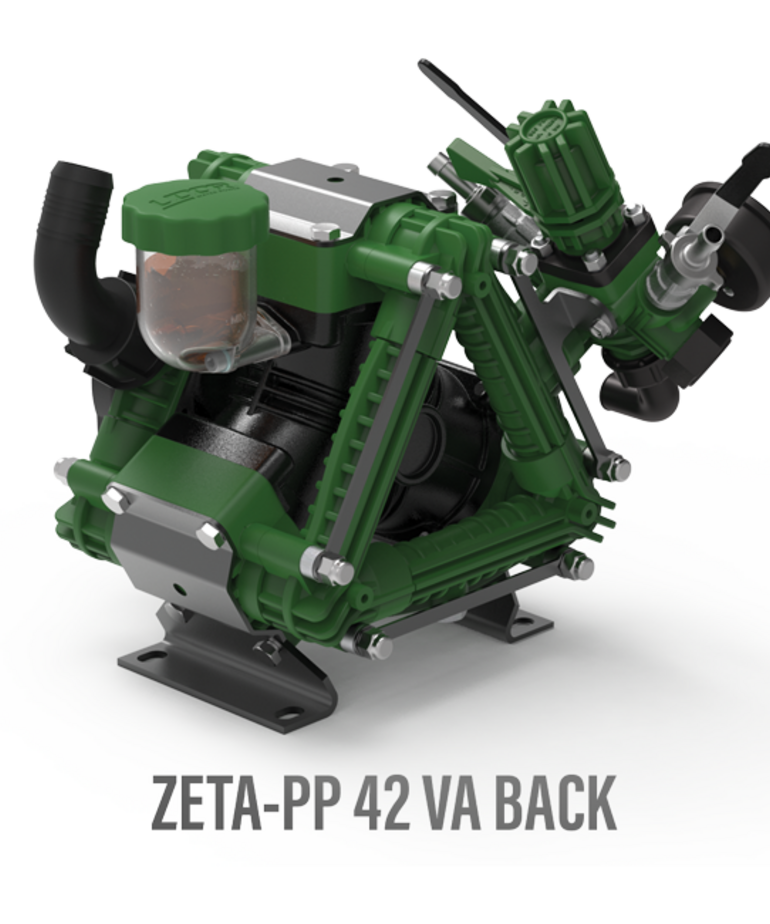

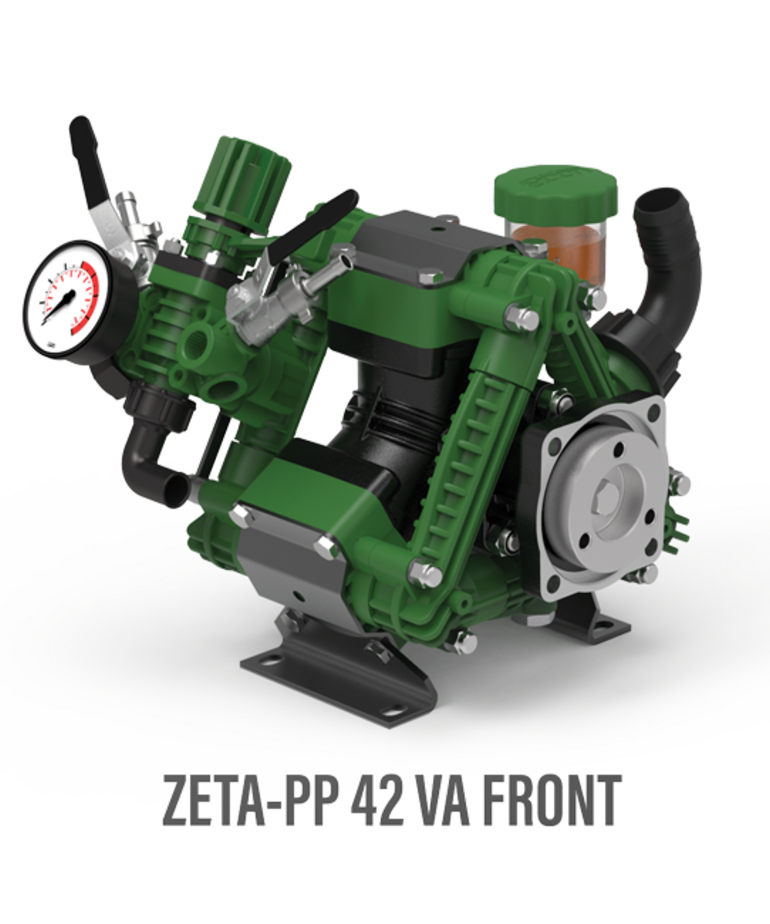

ZETA-PP 42 low-pressure 3-cylinder diaphragm pumps have anodized aluminum bodies with polypropylene heads & manifolds and stainless steel valves. A control valve with a pressure gauge is standard on all models. Designed to handle SH.
| Specifications | ZETA-P 42 |
| Inlet Port | 1-1/4″ Hose Barb |
| Outlet Ports – Valve | (2) 1/2″ Hose Barb |
| Bypass | 3/4″ Hose Barb |
| Piston Diameter | 55.0mm |
| Crankshaft Stroke/Code | |
| Dimensions – Pump Only – GR Version |
11″L x 11″W x 12″H 16″L x 11″W x 12″H |
Lubrication: Requires 20 oz. of Udor Lube 40W Premium Pump Oil.
Alternate Oil: 30W non-detergent or 15W-40 non-detergent oil.
| Description | Part # |
| Diaphragm Kit – GREENTECH | 6710.02 |
| Diaphragm Bolt & Washer Kit | 6640.02 |
| Valve Kit | 6930.05 |
----
DOWNLOADS:
