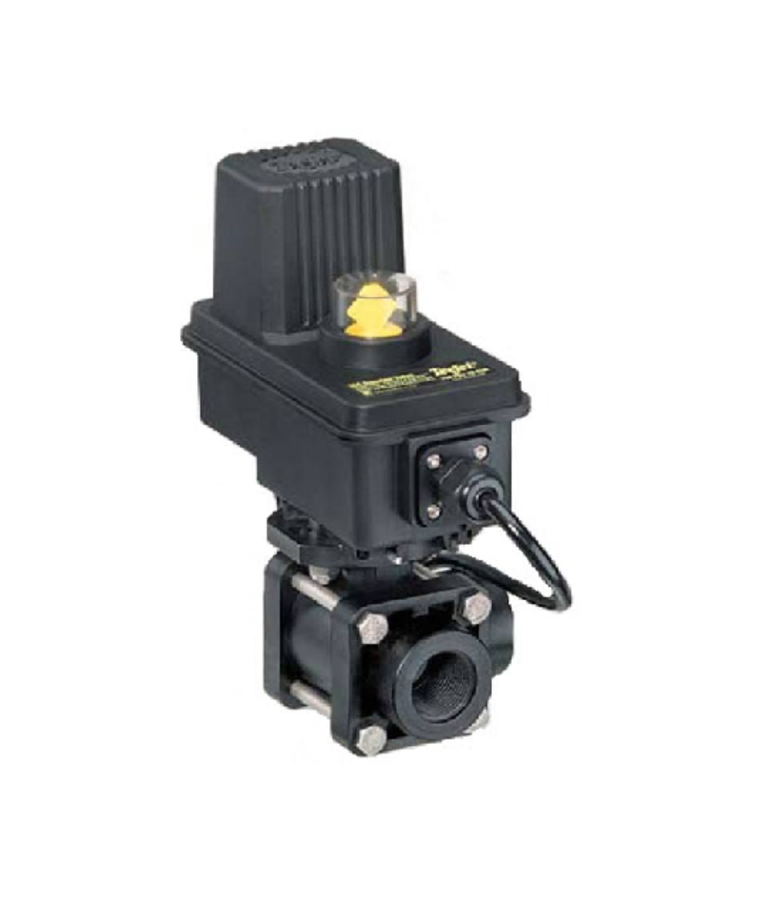

The 344 series has many options to provide ideal performance. These options include the choice of either a polypropylene or stainless steel ball to complete the stainless steel stem, the option for either an E or EC series motor, as well as cable or DIN electrical connections.

The 344 series has many options to provide ideal performance. These options include the choice of either a polypropylene or stainless steel ball to complete the stainless steel stem, the option for either an E or EC series motor, as well as cable or DIN electrical connections. The 344 valve series also is available in either 2-way or 3-way variations. The 3-way version redirects the flow to a bypass line when the booms are not active, while the 2-way maintains a complete shut off.

Features:

• 3-way valve
• E series motor
• 1” pipe thread
• Positively switched (with 0.5 meter cable)
• 22 RPM with complete shutoff in 0.7 seconds
• Maximum Pressure: 300 P.S.I.
• Flow Rate: 24 GPM with a 5 P.S.I. pressure drop, 45 GPM with a 10 P.S.I. pressure drop
