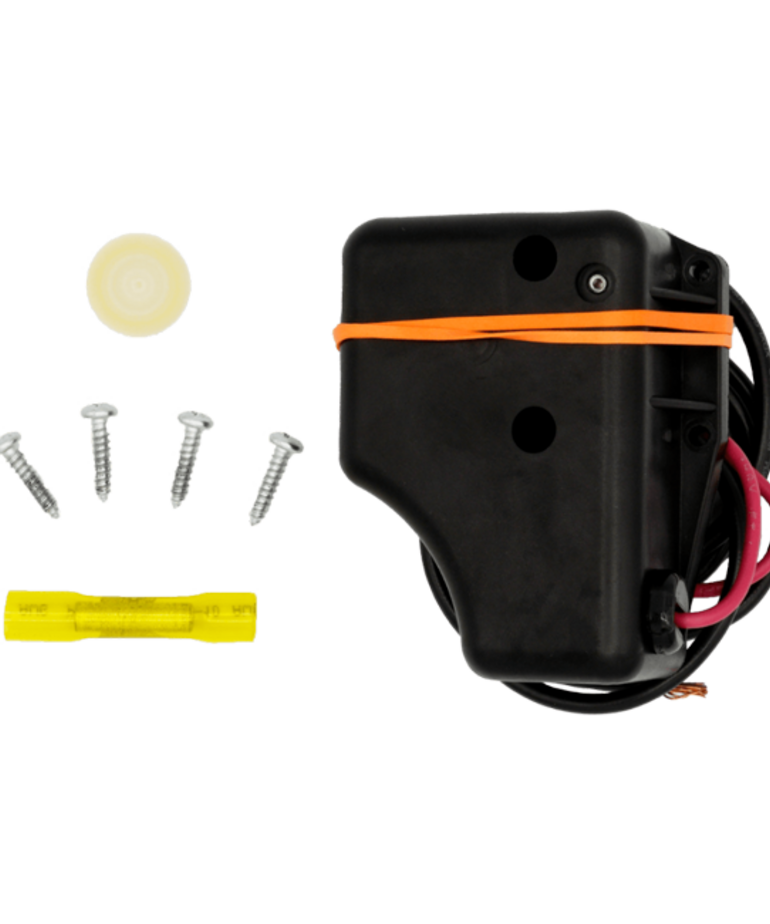

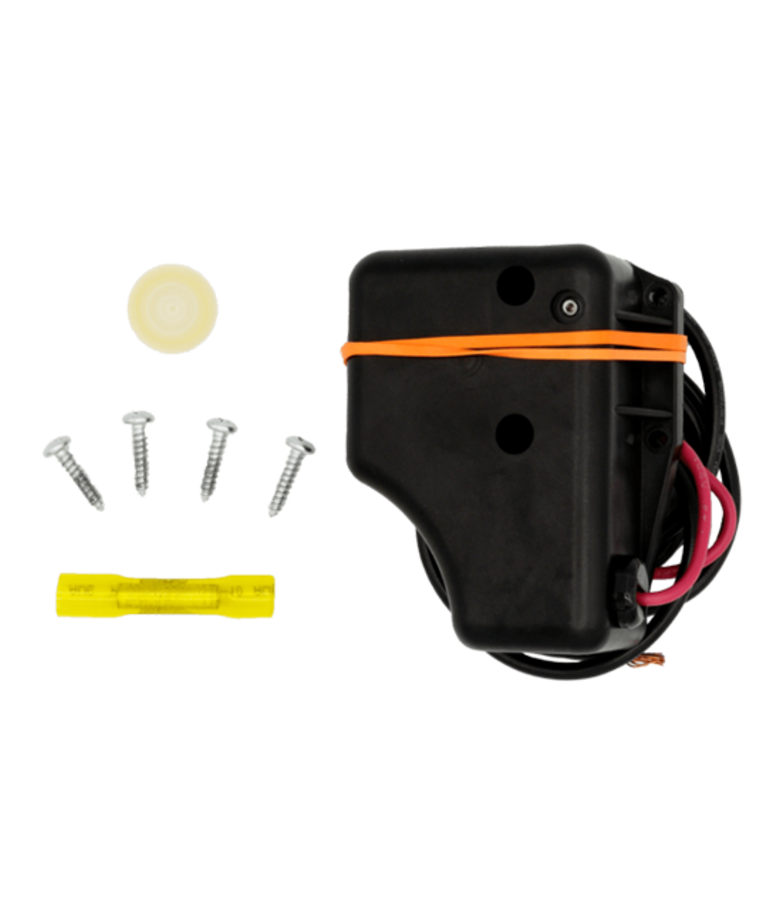

Make pump repair easy with the replacement pressure switch and relay combination for the Remco Fatboy Series sprayer pumps. This pressure switch relay combination is simple to install; just remove four screws. Once installed on your Remco pump, this pressure switch is adjustable with a 1/16th hex key and has a pressure range of up to 80 PSI.

Remco PSW-FB-80-R Pressure Switch Assembly And Relay For Fatboy Series Features

• The pressure should be adjusted according to the pressure setting located on your pump label or to a pressure that eliminates rapid cycling/pulsation.
• This product is compatible with Remco Industries Fatboy series pumps only.
• Utilizes a heavy-duty microswitch pre-wired to a load relay for extended switch life.
• This pressure switch can not be installed on other pump brands.
• Made in the USA

Remco PSW-FB-80-R Pressure Switch Assembly And Relay For Fatboy Series Specifications

• MFG P/N: PSW-FB-80-R
• Height: 2"
• Length: 7"
• Width: 5"
• GPM: 80
• Pressure: 80
• Weight: 0.1 lbs.
