SKU: 6233

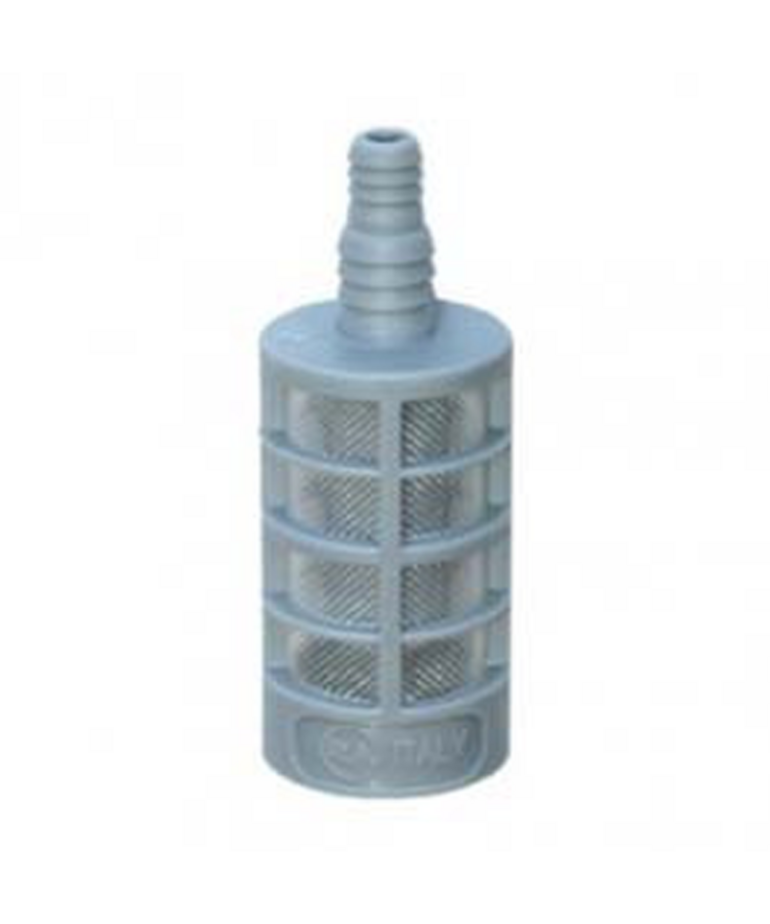

The Plastic Chemical Filter with Check Valve is a compact inline suction filter designed to protect softwash and chemical injection systems from debris and backflow. This unit has a built-in check valve and a mesh filter screen, which keeps the chemical flow clear of debris and stops any unwanted backflow.

Includes:

• One (1) barbed inline chemical filter
• Integrated check valve to prevent backflow
• Removable filter screen for easy cleaning
• Lightweight plastic body resistant to harsh chemicals

Performance Specifications:

• Inlet/Outlet: 1/4″ hose barb (fits 1/4″ ID tubing)
• Material: Chemical-resistant polypropylene or PVC plastic
• Check Valve: Integrated spring-loaded one-way valve
• Filter Type: Fine mesh screen (typically 50–100 mesh)
• Operating Pressure: Up to 150 PSI
• Temperature Range: 40°F to 120°F
• Application: Suction-side chemical filtration for softwash, metering pumps, bleach tanks

Key Benefits:

• Protects pump and nozzle components from debris and clogging
• Built-in check valve prevents chemical backflow and cross-contamination
• Transparent or semi-clear body for easy visual inspection
• Tool-free disassembly for quick cleaning and maintenance
• Compatible with SH, surfactants, and other softwash chemicals
