Banjo Cam Lever Coupling | Cam Lever Dust Cap

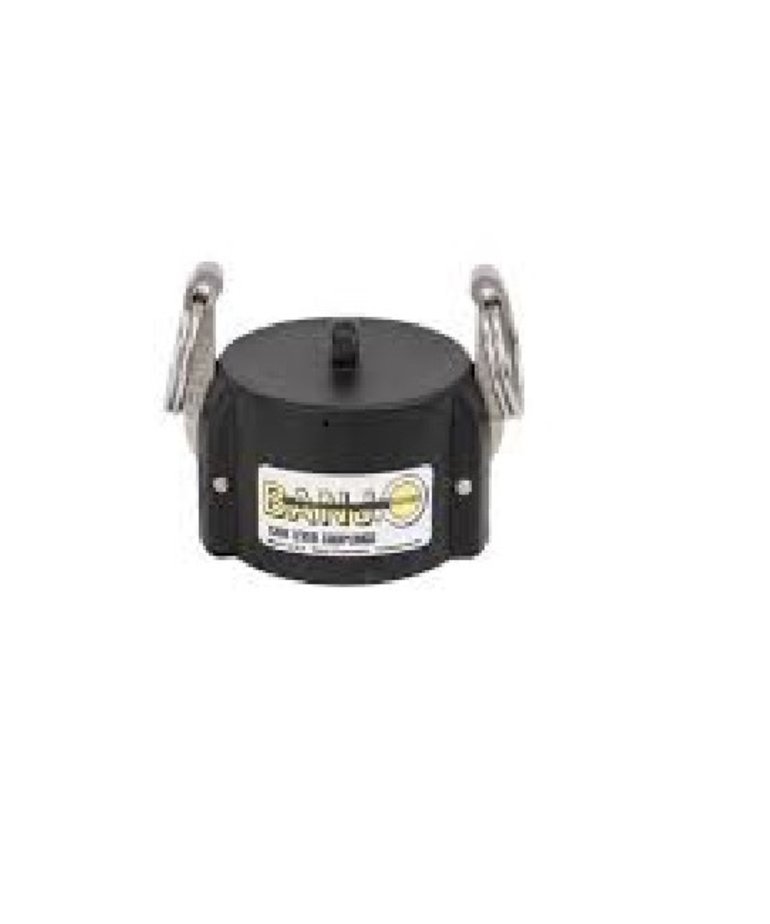

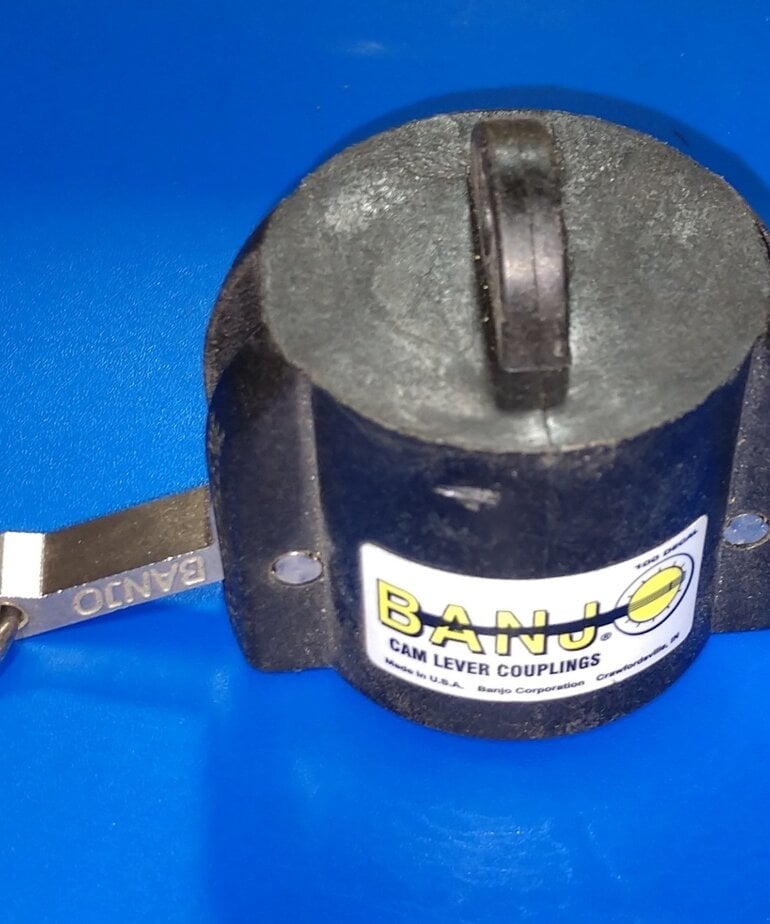

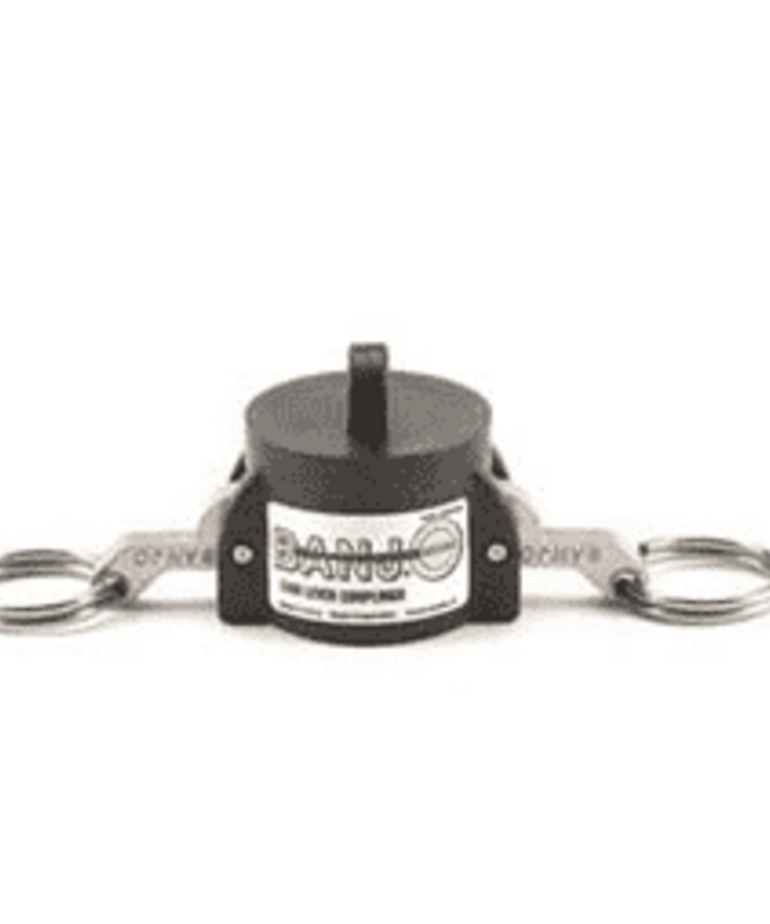

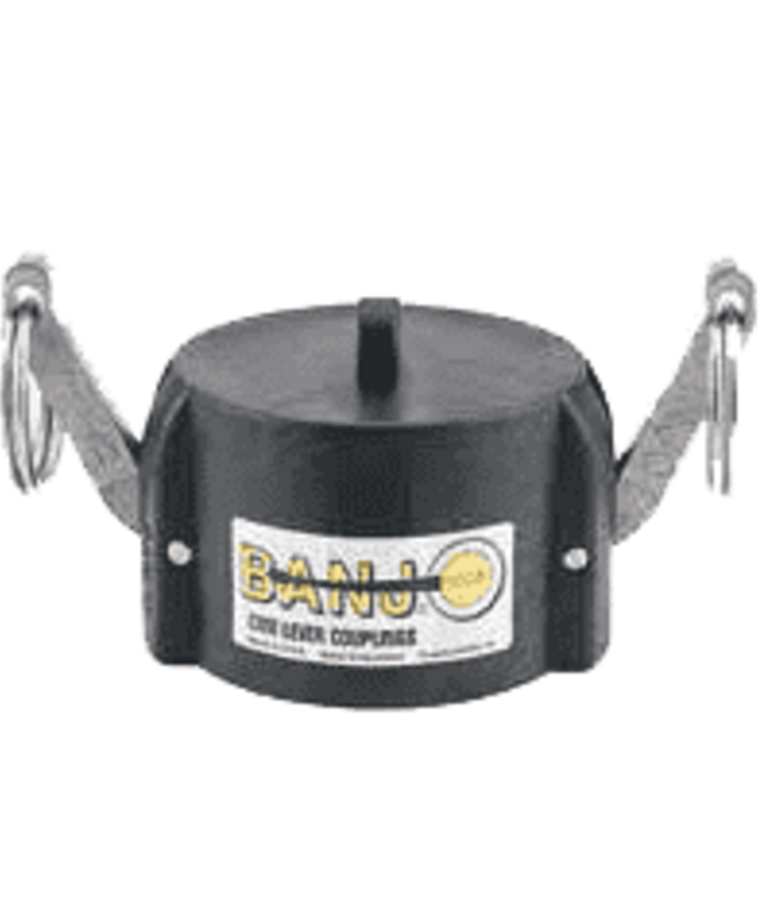

200CAP by Banjo | Cam Lever Coupling | 2" Cam Lever Dust Cap | 200 PSI

Cam Type: Type DC
Ends Configuration: 2in Female Cam & Groove
Material(s): Polypropylene
Seal Material(s): EPDM

• Stainless steel rings, arms & pins
• Most complete line of polypropylene couplings available
• Versatile—interchangeable with all types of cam lever couplers
• Precision molded - insures a uniform and accurate fit
• Durable - Polypropylene is glass reinforced for rugged strength and durability
• Smooth operating - finger rings are designed for easy opening of cam levers
• Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
• BSP threads available 1" - 3" sizes (excluding 1-1/4")
• Operating conditions:
• 3/8" thru 2" - 100 PSI at 0° F; 125 PSI at 70° F; 70 PSI at 150° F.
• 2-1/2", 3" & 4" Cap - 50 PSI; Couplings 75 PSI max
• Economical and superior in performance
• Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available (Only for 200ABP)
• Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
• WARNING: Couplings should not be disconnected under pressure or with liquid in the line.

-----

075CAP by Banjo | Cam Lever Coupling | 3/4" Cap Male Adapter | 300 PSI | Gasket: EPDM | Polypropylene

Cam Type: Type DC
Ends Configuration: 3/4in Female Cam & Groove
Material(s): Polypropylene
Seal Material(s): EPDM

• Stainless steel rings, arms & pins
• Most complete line of polypropylene couplings available
• Versatile - interchangeable with all types of cam lever couplers
• Precision molded - insures a uniform and accurate fit
• Durable - Polypropylene is glass reinforced for rugged strength and durability
• Smooth operating - finger rings are designed for easy opening of cam levers
• Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
• BSP threads available 1" - 3" sizes (excluding 1-1/4")
• Economical and superior in performance
• Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
• Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
• WARNING: Couplings should not be disconnected under pressure or with liquid in the line.

-----

100125CAP by Banjo | Cam Lever Coupling | 1" Cap Male Adapter | 300 PSI | Gasket: EPDM | Polypropylene

Cam Type: Type DC
Ends Configuration: 1in Female Cam & Groove
Material(s): Polypropylene
Seal Material(s): EPDM

• Stainless steel rings, arms & pins
• Most complete line of polypropylene couplings available
• Versatile - interchangeable with all types of cam lever couplers
• Precision molded - insures a uniform and accurate fit
• Durable - Polypropylene is glass reinforced for rugged strength and durability
• Smooth operating - finger rings are designed for easy opening of cam levers
• Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
• BSP threads available 1" - 3" sizes (excluding 1-1/4")
• Economical and superior in performance
• Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
• Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
• WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
